VW MKIV GTI T3 Twin Scroll Top Mount Turbo Manifold V-Band - EVOLUTION
-
The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, with 1.8T 20V specialists, a new project full of improvements emerged.
-

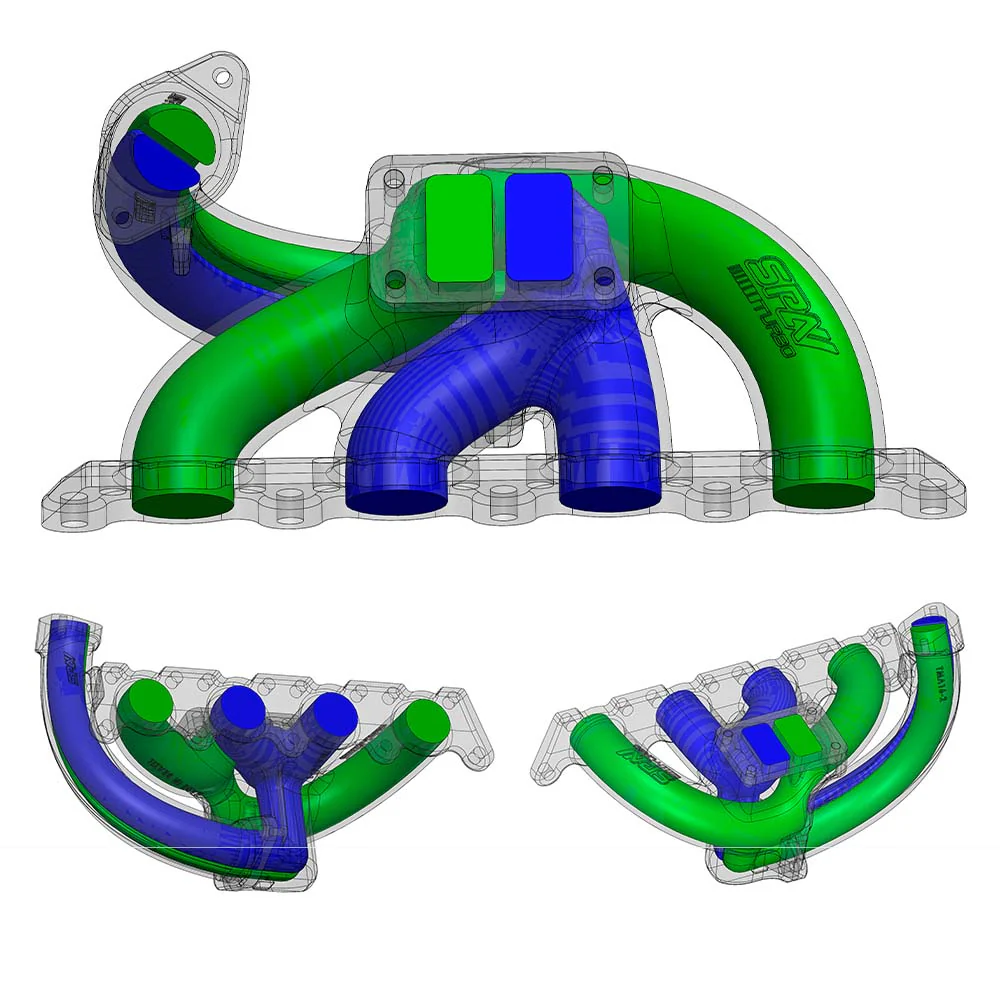

Better performance, with optimized flow thanks to redesigned runners.
-
ā Perfect position of the wastegate, allowing the application of large valves, facilitating boost control and possible maintenance.
-

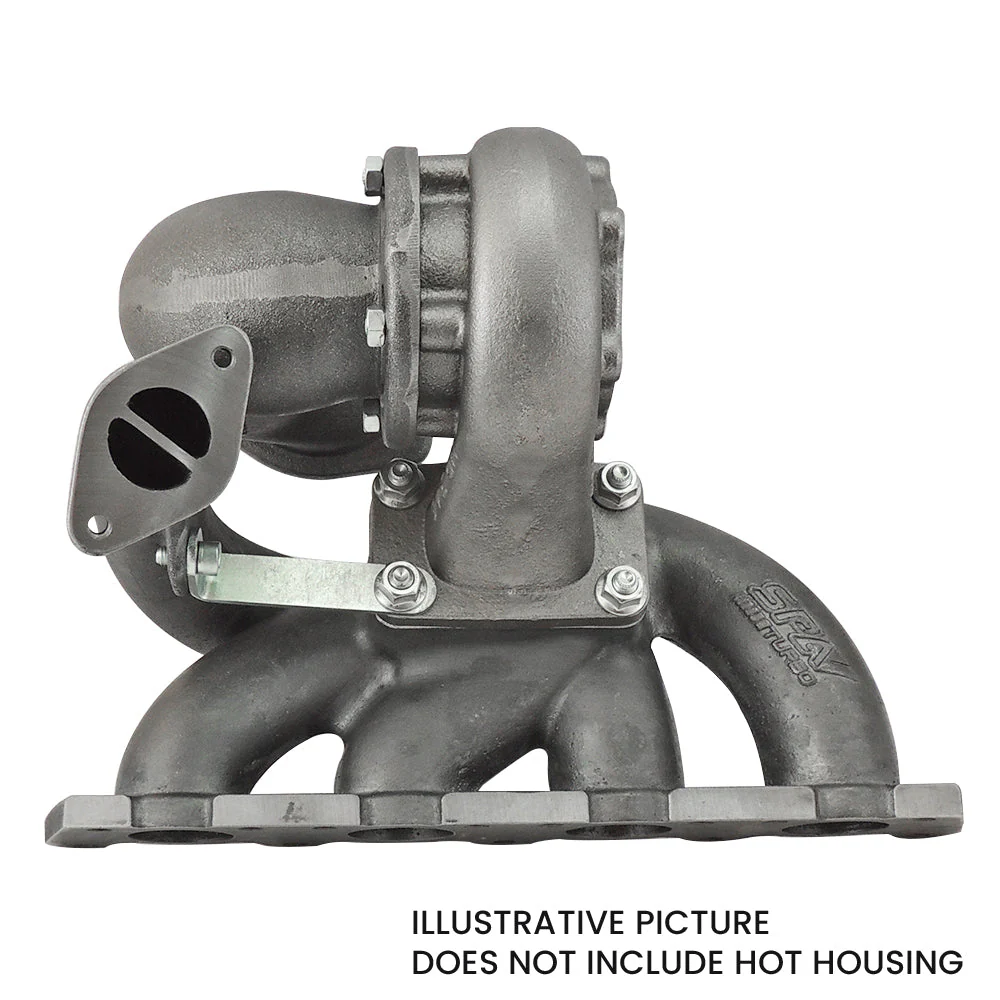

Ideal turbocharger positioning for building a pressurization with smooth curves and accommodates turbines as big as GT35 and similar.
-

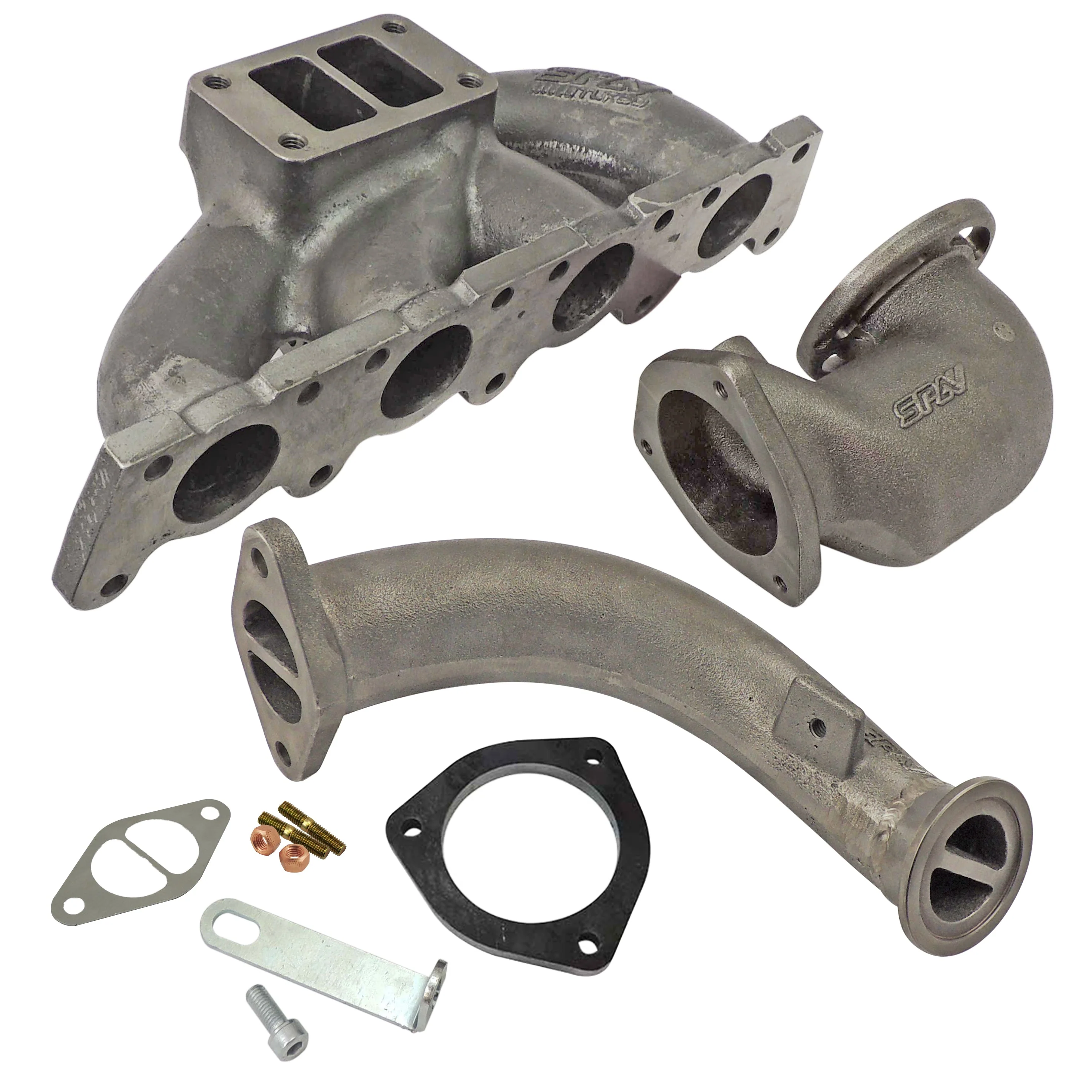

Includes cast initial exhaust outlet and 3Ā¢Ć¢āĀ¬Ā flange for making the rest of the exhaust, facilitating application.
-
Application: VW/Audi 1.8T 20V transverse
-
Turbocharger mount: Top mount
-
Turbine housing flange: T3
-
Wastegate flange: V-Band 44/45mm
-
Runners internal diameter: 42mm
-
Material: Cast iron
Original: $7,374.34
-70%$7,374.34
$2,212.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
-
The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, with 1.8T 20V specialists, a new project full of improvements emerged.
-
Better performance, with optimized flow thanks to redesigned runners.
-
ā Perfect position of the wastegate, allowing the application of large valves, facilitating boost control and possible maintenance.
-
Ideal turbocharger positioning for building a pressurization with smooth curves and accommodates turbines as big as GT35 and similar.
-
Includes cast initial exhaust outlet and 3Ā¢Ć¢āĀ¬Ā flange for making the rest of the exhaust, facilitating application.
-
Application: VW/Audi 1.8T 20V transverse
-
Turbocharger mount: Top mount
-
Turbine housing flange: T3
-
Wastegate flange: V-Band 44/45mm
-
Runners internal diameter: 42mm
-
Material: Cast iron
